PICs, or Photonic Integrated Circuits, are miniature optical circuits fabricated on a single chip, typically made of materials like silicon, indium phosphide, or silicon nitride. They function much like electronic integrated circuits (ICs) but instead of manipulating electrons, PICs manipulate photons (light). This allows for a variety of optical functions to be performed, such as light generation, amplification, modulation, switching, routing, and detection, all within a compact and integrated package.
Think of them as tiny fiber optic networks shrunk down onto a chip. They are revolutionizing fields like telecommunications, data centers, medical diagnostics, and sensing. In telecommunications, PICs enable higher bandwidth and lower energy consumption in optical transceivers, the devices responsible for transmitting and receiving data over fiber optic cables. In data centers, where energy consumption and space are major concerns, PICs offer a more efficient and compact way to handle massive data traffic.
In medical diagnostics, PICs are used to create highly sensitive sensors for detecting diseases and monitoring patient health. The ability to integrate multiple optical components onto a single chip allows for complex and highly accurate measurements. For example, a PIC-based sensor could be used to detect specific biomarkers in a blood sample, indicating the presence of a particular disease. In environmental sensing, PICs can be used to detect pollutants and monitor air and water quality.
What is a Connector?
In the context of PICs, a connector serves as the crucial interface between the PIC and the external world. Just as electrical connectors provide a pathway for electrical signals, optical connectors provide a pathway for light signals to enter and exit the PIC. Because the optical signals within a PIC are confined to tiny waveguides (channels for light), efficiently coupling light to and from these waveguides is essential for optimal performance.
Connectors for PICs come in various forms, but their primary function remains the same: to minimize optical losses and maintain signal integrity during the transition from free-space light or fiber optics to the on-chip waveguide and vice versa. Mismatches in refractive index, waveguide size, and alignment can lead to significant signal degradation if the connector is not properly designed and implemented.

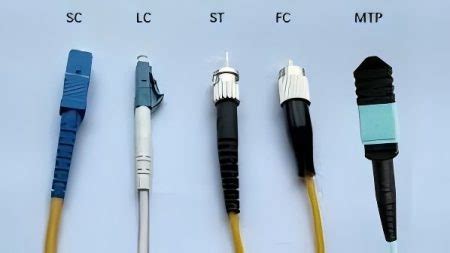

Types of connectors include fiber optic connectors aligned with the PIC's input/output facets, free-space coupling using lenses and mirrors, and edge coupling techniques. Fiber optic connectors are commonly used to connect PICs to existing fiber optic networks. Free-space coupling, while offering flexibility, requires precise alignment and is often more sensitive to environmental vibrations. Edge coupling involves directly butting a fiber or other optical component against the edge of the PIC chip.
The choice of connector depends on factors such as the application, the PIC's design, and the desired level of performance. High-performance applications often require specialized connectors and careful alignment procedures to minimize insertion loss (the amount of light lost as it passes through the connector) and back reflection (light reflected back into the PIC).
In summary, PICs offer powerful solutions for manipulating light on a chip, and connectors are vital components that bridge the gap between the PIC and the external optical environment, enabling these miniature photonic circuits to fulfill their potential in a wide range of applications.
