PIC Microcontrollers and Motor Control
PIC microcontrollers (PICs) are popular for embedded applications, particularly in motor control systems. Their low cost, small size, and versatile peripherals make them well-suited for managing various types of motors, from simple DC motors to more complex stepper and brushless DC (BLDC) motors.
Why Use PICs for Motor Control?
Several features contribute to the widespread use of PICs in motor control:
- Cost-Effectiveness: PICs are relatively inexpensive, making them attractive for mass-produced motor-driven products.
- Small Footprint: Their compact size allows them to be integrated into space-constrained designs.
- Integrated Peripherals: Many PIC models incorporate peripherals crucial for motor control, such as:
- Pulse Width Modulation (PWM): Essential for controlling motor speed and direction by varying the duty cycle of a signal applied to the motor drivers.
- Analog-to-Digital Converters (ADCs): Used to read sensor data like motor current, voltage, position (e.g., from encoders), and temperature, allowing for closed-loop control.
- Timers/Counters: Necessary for generating precise timing signals and measuring motor speed or position.
- Communication Interfaces (UART, SPI, I2C): Facilitate communication with other devices, such as sensors, actuators, or a host computer for monitoring and control.
- Comparators: Allow for fast fault detection and over-current protection.
- Flexibility: PICs can be programmed to implement various motor control algorithms, from simple open-loop control to more sophisticated closed-loop techniques like PID control.
- Low Power Consumption: Many PICs are designed for low-power operation, important for battery-powered motor applications.
Motor Types and PIC Control
PICs can be used to control a wide range of motor types:
- DC Motors: Simple DC motors can be controlled using a PIC's PWM output and an H-bridge driver circuit to control speed and direction. Closed-loop control using an encoder provides more precise speed regulation.
- Stepper Motors: Stepper motors require precise control of the current in multiple windings to achieve accurate angular positioning. PICs can generate the required step sequences and control the current using PWM.
- Brushless DC (BLDC) Motors: BLDC motors require more complex control strategies due to their electronic commutation. PICs with dedicated motor control peripherals, such as back-EMF sensing or Hall-effect sensor interfaces, simplify BLDC motor control. Field-Oriented Control (FOC) algorithms can be implemented for high-performance BLDC motor control.
- Servo Motors: Servo motors typically use a PWM signal for position control. A PIC can generate the required PWM signal based on a desired position command.
Control Strategies
PICs enable the implementation of diverse motor control strategies:
- Open-Loop Control: Simple and suitable for applications where precise control is not critical. The PIC simply outputs a control signal based on a desired input, without feedback.
- Closed-Loop Control: Uses feedback from sensors (e.g., encoders, current sensors) to adjust the control signal and maintain the desired motor performance. PID (Proportional-Integral-Derivative) control is a common closed-loop technique.
- Field-Oriented Control (FOC): A more advanced control technique for AC and BLDC motors that provides superior performance, efficiency, and dynamic response. Requires more computational power but is achievable with modern PICs.
Conclusion
PIC microcontrollers offer a versatile and cost-effective solution for motor control applications. Their integrated peripherals, programmability, and low cost make them a popular choice for a wide range of motor types and control strategies. Choosing the right PIC model and implementing an appropriate control algorithm allows engineers to create efficient and reliable motor control systems.
```
1772×1376 electrical motor images from wonderfulengineering.com
1947×1357 electric motor works car electric motor engineering from www.electricmotorengineering.com
1920×1080 hd engine wallpapers engine backgrounds engine images from wonderfulengineering.com
1500×1095 electric motor royalty images stock pictures from www.shutterstock.com
1600×1200 wallpaper motor png vina png vrogueco from www.vrogue.co
1344×1032 engine motors png image purepng transparent cc png image from purepng.com
720×480 motor car pixabay from pixabay.com
1280×858 motor sepeda mesin foto gratis pixabay pixabay from pixabay.com
943×911 engine motors png image from pnghunter.com
1600×900 electric motor design nehru memorial from nehrumemorial.org
1920×1080 dieser zweitaktmotor von motori minarelli erfullt die euro norm from de.motor1.com
2000×1256 premium photo car engine white background from www.freepik.com
2940×1960 modern car engine deep solid black background neural network from www.vecteezy.com
6000×3282 electric motors generators device global from gesrepair.com

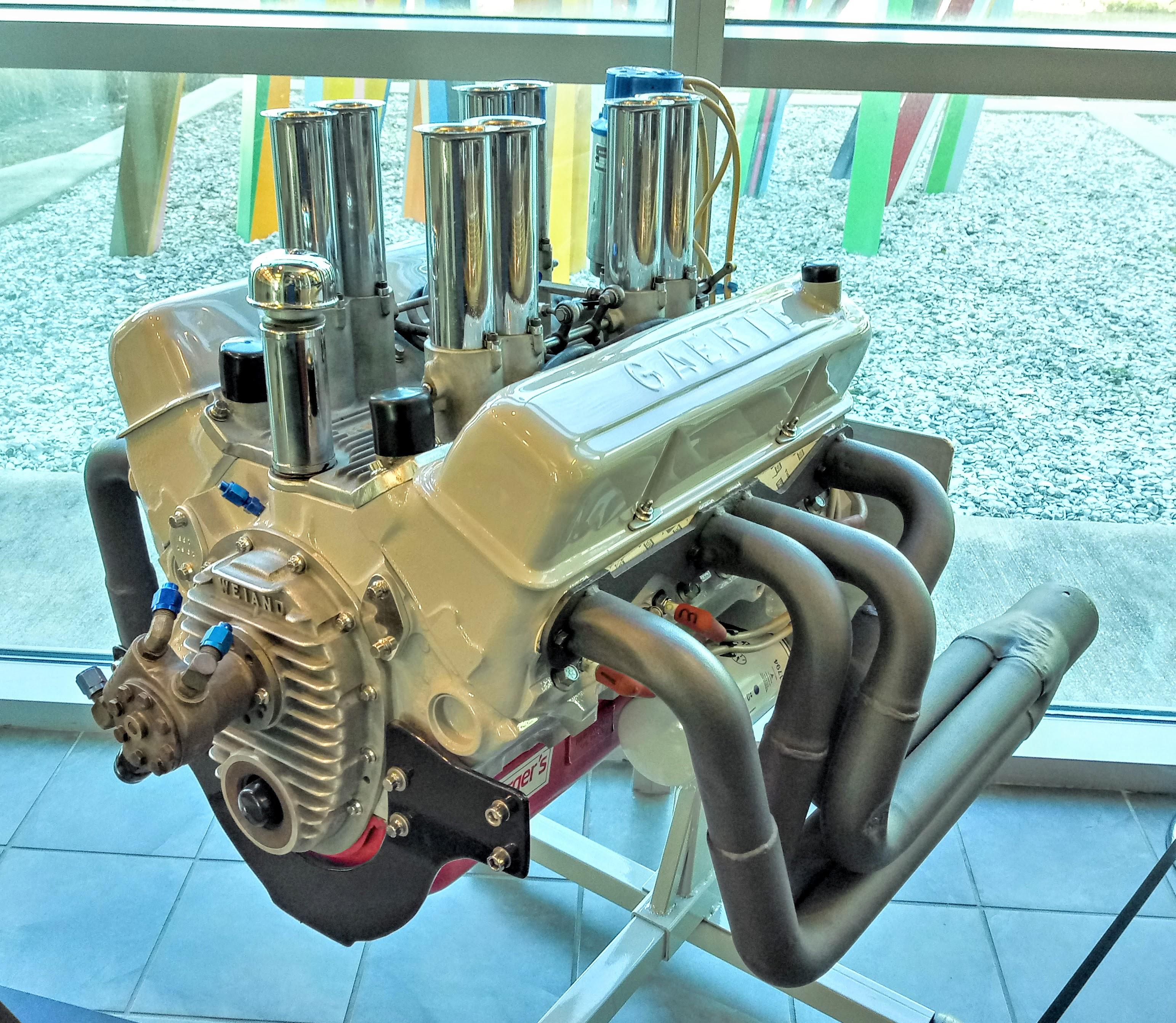

3086×2685 beautiful chevy engine rpics from www.reddit.com
1170×1170 kw kv waterproof brushless dc motor ip sensorless from www.brushless.com
1300×1485 erster blick triumph enthullt cm motor fur from motocrossactionmag.com
1024×560 motor engine key differences motors engines from www.mechstudies.com
1600×1373 types principles applications electric motors from www.iqsdirectory.com
1920×1080 turbo vr crate engines godsend modern vws drive from www.thedrive.com

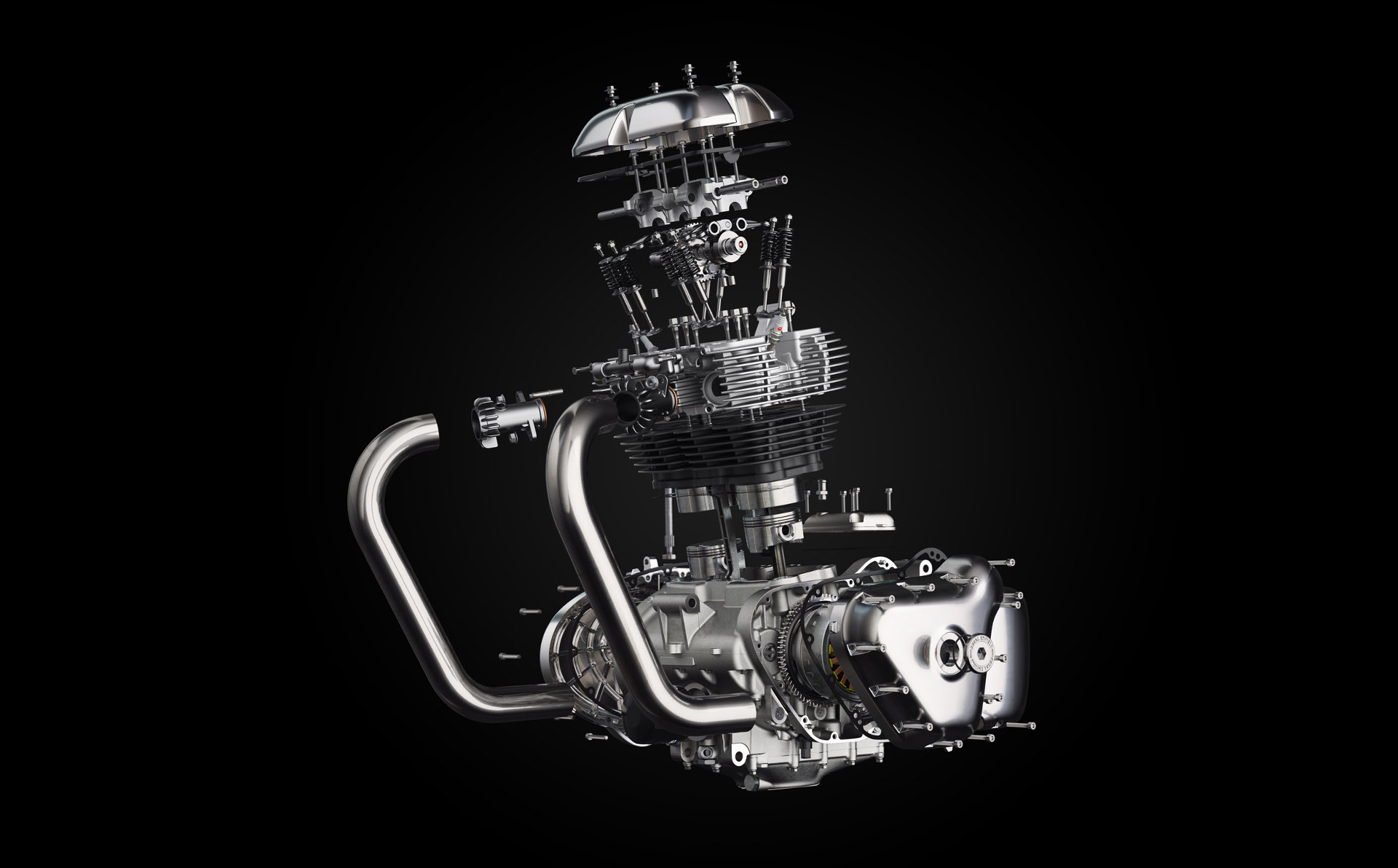

1920×1192 king road royal enfield takes crown developd from develop3d.com
